Extracting Urban Features from Raster Data¶

import matplotlib.pyplot as plt
import rasterio

from tobler.dasymetric import extract_raster_features

%load_ext watermark
%watermark -v -d -u -p tobler,geopandas,rasterio

Last updated: 2026-03-30

Python implementation: CPython
Python version       : 3.14.3
IPython version      : 9.12.0

tobler   : 0.13.1.dev120+g87df23aef
geopandas: 1.1.3
rasterio : 1.5.0

Fetching boundary data on the fly¶

We’ll use osmnx to grab a geodataframe of the UK boundary

import osmnx as ox

Extracting raster features¶

When interpolating data like population counts, a common strategy for improving accuracy is to incorporate ancillary data that can improve estimation by masking out uninhabited areas. A commonly-used data source for this purpose is land use/land cover (LULC) data collected from from remote sensing and satellite imagery. But these data can also be difficult to work with because they’re often distributed in large raster files that can be difficult to process alongside polygonal vector data. To assist, tobler provides the extract_raster_features function that consumes raster data and converts (a subset) of pixel values into polygon features represented by a geopandas GeoDataFrame.

As an example, consider Copernicus which provides global, annual LULC data at a 100m pixel resolution. According to their documentation “Urban / built up” areas are denoted with the value 50.

Copernicus data now requires registration

Note: the raster doesn’t cover the whole country, so we see the hard edge appear on the eastern side. To do this properly, we could run this function again with the next raster tile from Copernicus, then concatenate the results

Extracting development intensity¶

In addition to copernicus, other data sources may contain additional or more precise data. For example, the National Land Cover Database (NLCD) provides land-use classification for the USA at a 30m pixel resolution. LULC classification in NLCD is also more detailed, with four categories of developed land, with different cell values denoting different intensities

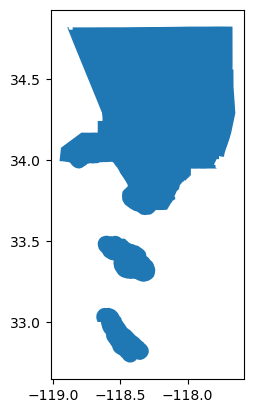

la = ox.geocode_to_gdf("los angeles county")

la.plot()

<Axes: >

la = la.to_crs(6424)

Now we’ll call extract_raster_features again, but this time we’ll read a compressed version of NLCD data from the spatialucr quilt bucket and extract the values 21, 22, 23, and 24 which represent developed land of different intensities

with rasterio.Env(AWS_NO_SIGN_REQUEST="YES"):
    urban_la = extract_raster_features(
        la,
        "s3://spatial-ucr/nlcd/landcover/nlcd_landcover_2011.tif",
        pixel_values=[21, 22, 23, 24],
    )

urban_la.info()

<class 'geopandas.geodataframe.GeoDataFrame'>
RangeIndex: 374259 entries, 0 to 374258
Data columns (total 2 columns):
 #   Column    Non-Null Count   Dtype
---  ------    --------------   -----
 0   value     374259 non-null  float64
 1   geometry  374259 non-null  geometry
dtypes: float64(1), geometry(1)
memory usage: 5.7 MB

Since NCLD is a fairly high-resolution raster and LA county is large, the resulting geodataframe

urban_la.head()

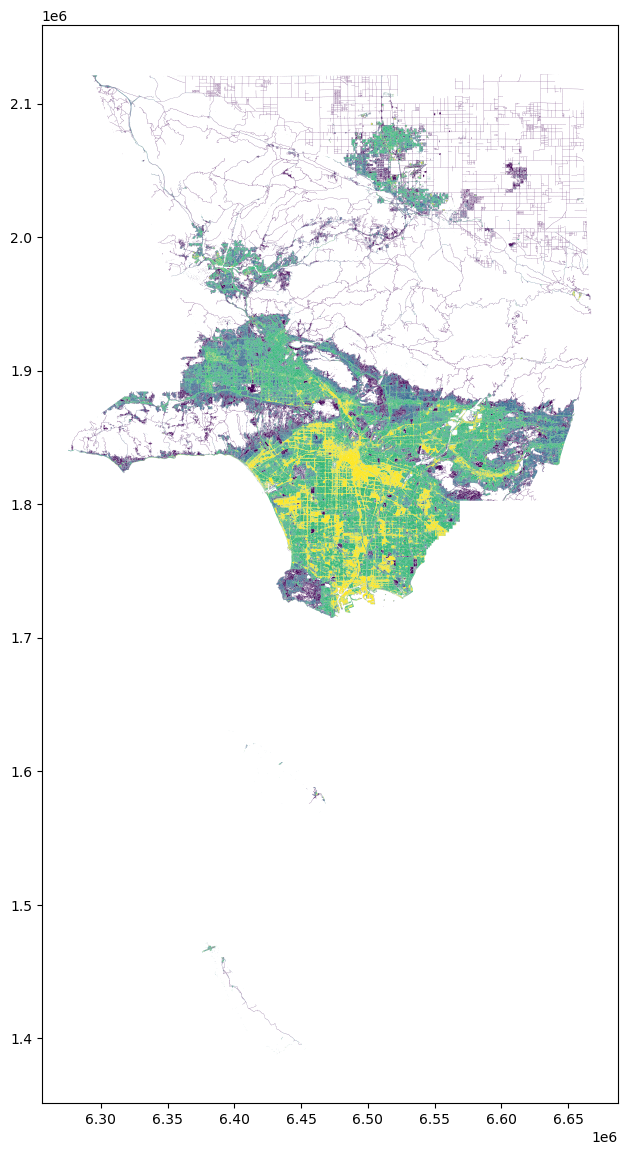

Since we extracted multiple pixel types, the values in this geodataframe differ, and plotting the geodataframe reveals how development varies across LA county

urban_la = urban_la.to_crs(6424)

fig, ax = plt.subplots(figsize=(20, 14))
urban_la.plot("value", ax=ax)

<Axes: >

From here, these data can be used to clip source features prior to areal interpolation or used in additional data processing pipelines. Alternatively, we might have extracted water and forestry features we know aren’t inhabited, and used the resulting features in reverse

If you want to extract features from multiple cell values but don’t need to represent variation, you can pass collapse_values=True, which will generate a geodataframe with fewer rows. As an example, if we wanted to extract the area in LA county that is at least 25% impervious surface, but we only care whether the area is impervious or not (regardless of the level of imperviousness) we could do the following.

Here, I’ve downloaded a different product from NLCD that defines imperviousness, and we’ll extract all cell values between 25 and 100 but collapse the values, so we end up with a discrete representation of imperviousness

with rasterio.Env(AWS_NO_SIGN_REQUEST="YES"):
    impervious_la = extract_raster_features(
        la,
        "s3://spatial-ucr/nlcd/impervious/nlcd_impervious_2011.tif",
        pixel_values=list(range(25, 101)),
        collapse_values=True,
    )

impervious_la.head()

impervious_la.info()

<class 'geopandas.geodataframe.GeoDataFrame'>
RangeIndex: 35217 entries, 0 to 35216
Data columns (total 1 columns):
 #   Column    Non-Null Count  Dtype
---  ------    --------------  -----
 0   geometry  35217 non-null  geometry
dtypes: geometry(1)
memory usage: 275.3 KB

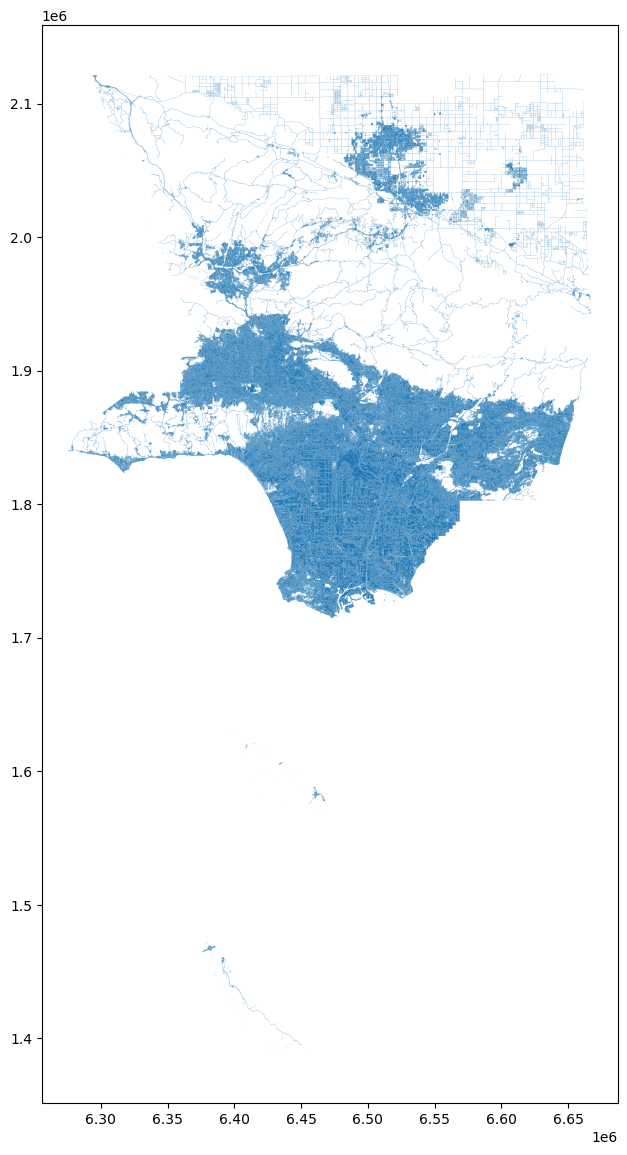

fig, ax = plt.subplots(figsize=(20, 14))
urban_la.plot(ax=ax)

<Axes: >
